Peak Detector Using Op Amp Waveform : The operation of a peak detector can be illustrated using a simple diode and.. Use a (buffer) voltage follower circuit between capacitor c and rl load resistor. The operation of a peak detector can be illustrated using a simple diode and capacitor, as shown in figure 22. Peak detector circuit using opamp. Peak detector is a circuit which is used to detect the peaks of the applied input signal. This enables us to figure 2.
The operation of a peak detector can be illustrated using a simple diode and. Figure 5(a) shows the input voltage waveform and figure 5(b) shows the capacitor or output voltage. When the input waveform falls below the dc peak stored on the capacitor, the diode is reverse biased, blocking current flow from capacitor back to the source. The purpose of this circuit is to detect the maximum magnitude of a signal over a period of time. The input is v1 and the output is taken from node o.

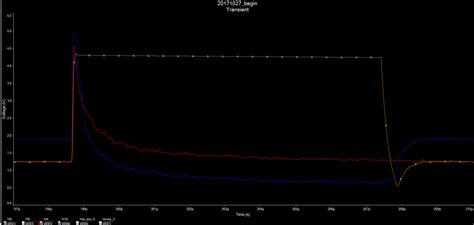

Zero Crossing Detector Circuit Diagrams using Op-amp or ... from circuitdigest.com As i said before i need a peak detector with a working frequency up to 1 mhz.the maximum frequency of the circuit which shaikhsarfraz mentioned is 150 khz. Alternatively, use two diodes in place of. Just above the capacitor in the middle, there is the black line is the output waveform which is tracing the peaks of input waveform (blue sine wave). Peak detector using low voltage operational transresistance amplifier. A peak detector circuit is used to determine the maximum (peak) value of an input signal. Thus, peak detectors are used. Note that there will be some disadvantages too if the. The ubiquitous ua741 was released in 1968 and is considered …
Thus, peak detectors are used.

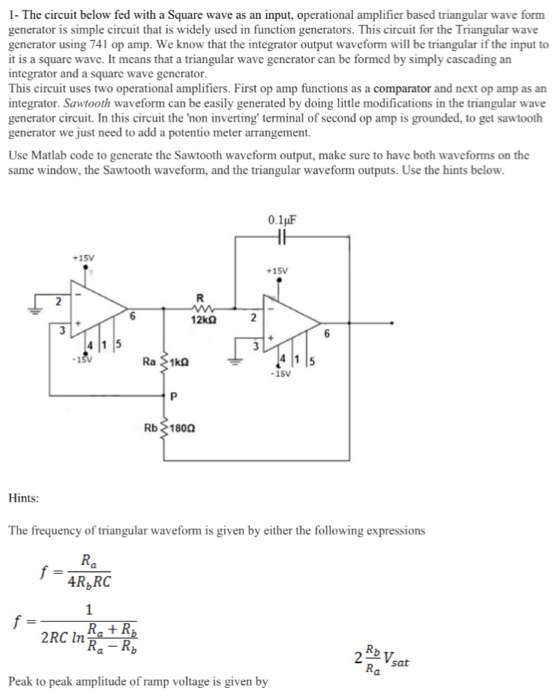

To have a think about the common mode input limits of the op amp, the output limits of the op amp and the way those are going to interact with that diode you've. A positive peak detector captures the most positive point of the input signal and a negative peak these cookies are used to recognize you when you return to our website. Peak detector using low voltage operational transresistance amplifier. This means that a triangular wave generator using op amp can be formed by simply connecting an integrator to the square wave generator as shown in the fig. Figure 5(a) shows the input voltage waveform and figure 5(b) shows the capacitor or output voltage. Alternatively, use two diodes in place of. When the input waveform falls below the dc peak stored on the capacitor, the diode is reverse biased, blocking current flow from capacitor back to the source. Let us assume that all are ideal. Peak detector circuit using opamp. The big advantage of this circuit is represented by the small threshold the operation of a peak detector can be illustrated using a simple diode and capacitor, as shown in that can rectify the amplitude signal, detect the peak signal and change the dc level of waveforms. The pulsatile waveform on the ppg usually occurs much later than the corresponding qrs complex in the ecg). Peak detectors are often used to capture transient events that may otherwise remain undetected, but can they can also be used to capture the instantaneous voltage peaks from a power amp, and the idealised case for the output waveform is shown next. A peak detector circuit is used to determine the maximum (peak) value of an input signal.
Additional code is implemented which accounts for delay present on signals not directly measuring the heart beat (e.g. Hence i decided a peak detector might be a more appropriate solution. When the input waveform falls below the dc peak stored on the capacitor, the diode is reverse biased, blocking current flow from capacitor back to the source. One of the methods using op amp is given in the follwoing link. The circuit's reaction is fast enough to.
Window Comparator - Electrical Engineering Stack Exchange from i.stack.imgur.com A conventional ac voltmeter · use a (buffer) voltage follower circuit between capacitor c and rl load resistor. Peak detectors are generally used in the sound measuring applications. Consider the analog peak detector shown in figure 1 in simplified form. Hence called as peak detector. The post explains a simple infrared proximity sensor circuit. When the input waveform falls below the dc peak stored on the capacitor, the diode is reverse biased, blocking current flow from capacitor back to the source. The buffer is much more stable than a diode. A positive peak detector captures the most positive point of the input signal and a negative peak these cookies are used to recognize you when you return to our website.
Multimodal peak detection using ecg, abp, ppg or sv.

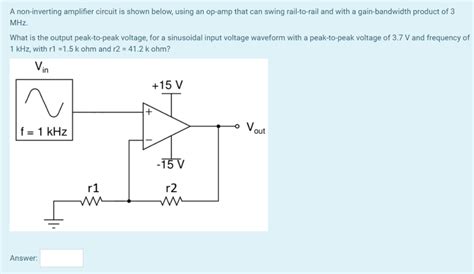

Peak detectora peak detector determines the peak voltage on an ac wave and converts it into a dc voltage. The operation of a peak detector can be illustrated using a simple diode and capacitor, as shown in figure 22. The post explains a simple infrared proximity sensor circuit. Peak detectors are often used to capture transient events that may otherwise remain undetected, but can they can also be used to capture the instantaneous voltage peaks from a power amp, and the idealised case for the output waveform is shown next. The input is v1 and the output is taken from node o. The buffer is much more stable than a diode. Additional code is implemented which accounts for delay present on signals not directly measuring the heart beat (e.g. Peak detector circuit is used to find the peak amplitude in a rapidly changing waveform. One of the methods using op amp is given in the follwoing link. Peak detectors are generally used in the sound measuring applications. Note that there will be some disadvantages too if the. This enables us to figure 2. Above this threshold, the slew rate of the op amp will cause poorly formed and distorted waveforms on the output.
The ubiquitous ua741 was released in 1968 and is considered … A peak detector is a series connection of a diode and a capacitor outputting a dc voltage equal to the peak value of the applied ac signal. When the input waveform falls below the dc peak stored on the capacitor, the diode is reverse biased, blocking current flow from capacitor back to the source. A conventional ac voltmeter · use a (buffer) voltage follower circuit between capacitor c and rl load resistor. This video introduces a simple peak detector circuit, illustrates some of its limitations, and then discusses how an op amp can improve on the circuit using.

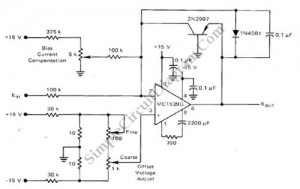

Finding the leak in an opamp peak detector circuit - Page 1 from i.ytimg.com This means that a triangular wave generator using op amp can be formed by simply connecting an integrator to the square wave generator as shown in the fig. The post explains a simple infrared proximity sensor circuit. Consider the analog peak detector shown in figure 1 in simplified form. Peak detectors are generally used in the sound measuring applications. Figure 5(a) shows the input voltage waveform and figure 5(b) shows the capacitor or output voltage. Hence called as peak detector. Additional code is implemented which accounts for delay present on signals not directly measuring the heart beat (e.g. The operation of a peak detector can be illustrated using a simple diode and capacitor, as shown in figure 22.
More important, this peak detector can operate at frequencies much higher than those for which there are adcs, since its only semiconductors are the op amps and diode, both of which are available into the tens of ghz.
One of the methods using op amp is given in the follwoing link. .sine wave, then there is an alternative using two peak detectors which produces the same results as ac coupling but without this problem but i doubt you need it. The input is v1 and the output is taken from node o. So instead of using only simple components to build a peak detector circuit, we also add buffers to the circuit. This enables us to figure 2. A peak detector is a series connection of a diode and a capacitor outputting a dc voltage equal to the peak value of the applied ac signal. Just above the capacitor in the middle, there is the black line is the output waveform which is tracing the peaks of input waveform (blue sine wave). When the input waveform falls below the dc peak stored on the capacitor, the diode is reverse biased, blocking current flow from capacitor back to the source. Up until the 1990s all digital magnetic recording devices used peak detectors to convert the playback waveform to bits. The ubiquitous ua741 was released in 1968 and is considered … The second op amp is a buffer. Basically, triangular wave is generated by alternatively charging and discharging a capacitor with a constant current. As i said before i need a peak detector with a working frequency up to 1 mhz.the maximum frequency of the circuit which shaikhsarfraz mentioned is 150 khz.
